C-LCR – In-Ceiling Speaker

คุณสมบัติสินค้า:

Superb home-theatre sound with zero footprint The CustomSound C-LCR is the ideal speaker for many installations as part of an invisible surround-sound system. Capable of pumping out clear, natural vocals and instruments with no harshness, this in-ceiling speaker sounds like a high-end stand-mount monitor. The C-LCR’s angled baffle directs sound down and toward your listening position, making movie soundtracks feel like they’re coming from the action on the screen instead of several feet above it. สินค้าราคาต่อตัว

Share

แบรนด์ : PSB

Share

Engineered for clarity

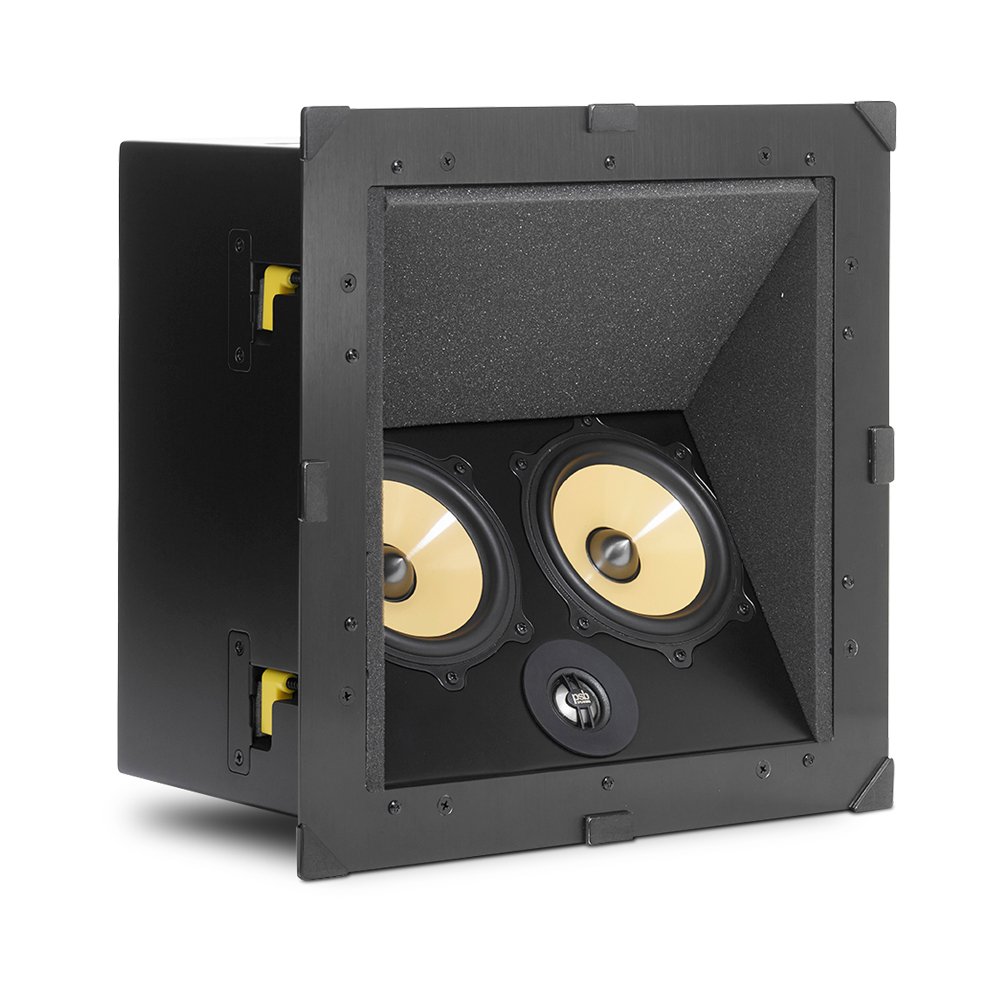

This in-ceiling, two-way design includes two 5¼” (133mm) woofers that employ clay/ceramic reinforced polypropylene cones flanking a 1″ (25mm) titanium dome, ferrofluid-cooled tweeter. The woofers and tweeter are borrowed from the PSB Imagine Series of freestanding speakers, so you can expect nothing less than immersive musicality, clarity, and believability.

Real sound for real homes
To achieve natural, resonance-free sound, the C-LCR drivers are mounted on an angled baffle in a relatively deep enclosure. This allows the proper dispersion required to create a three-dimensional soundstage when recessed into the ceiling. Since the drivers in the C-LCR are also used in the Imagine Series, those freestanding models will blend perfectly with the CustomSound Series if you decide to use a combination of freestanding and in-ceiling speakers in your system.

Stand out by blending in
The cabinet of the C-LCR is 7¾” (196mm) deep, taking advantage of the extra ceiling space in most homes. This allows for an optimal internal volume of 0.36 cubic feet (10.24L). The provided white magnetic grilles attach to the front frame of the speaker, seamlessly covering the entire unit to conceal it from view. As with all PSB products, these are very musical sounding speakers that blend effortlessly into any space.

สนใจงานระบบ ติดต่อสอบถามเพิ่มเติม คุณวีระพงศ์ 065-549-9697  ,คุณจิระภากร 092-565-9090

Email : multiroom@conice.co.th

Frequency Response
On Axis @ 0° ±3dB
65-23,000Hz
On Axis @ 0° ±1 1/2dB
70-20,000Hz
LF Cutoff -10dB
50Hz
Sensitivity
Anechoic Chamber
88dB
Listening Room
90dB
Impedance
Nominal
6 Ohms
Minimum
4 Ohms
Input Power
Recommended
20 - 150 Watts
Program
150 Watts
Acoustic Design
Tweeter (Nominal)
1” (25mm) Titanium Dome with Ferrofluid
Woofer (Nominal)
2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone

Rubber Surround
Crossover
1750Hz, LR4
Internal Volume
0.36 cu ft (10.24L)
Design Type
Sealed
Dimensions / Weights / Finish
Size (W x H x D)
Cutout Dimensions - 13 3/16 x 13 3/16” * (335 x 335mm)

Mounting Depth - 7 3/4” (196mm) *

Grille Dimensions - 14 3/4 x 14 3/4 x 3/8” * (373 x 373 x 7mm)
Weight
Net - 17.6lb (8.8kg)/each

Shipping - 24lb (10.9kg)/each
Finish
White
