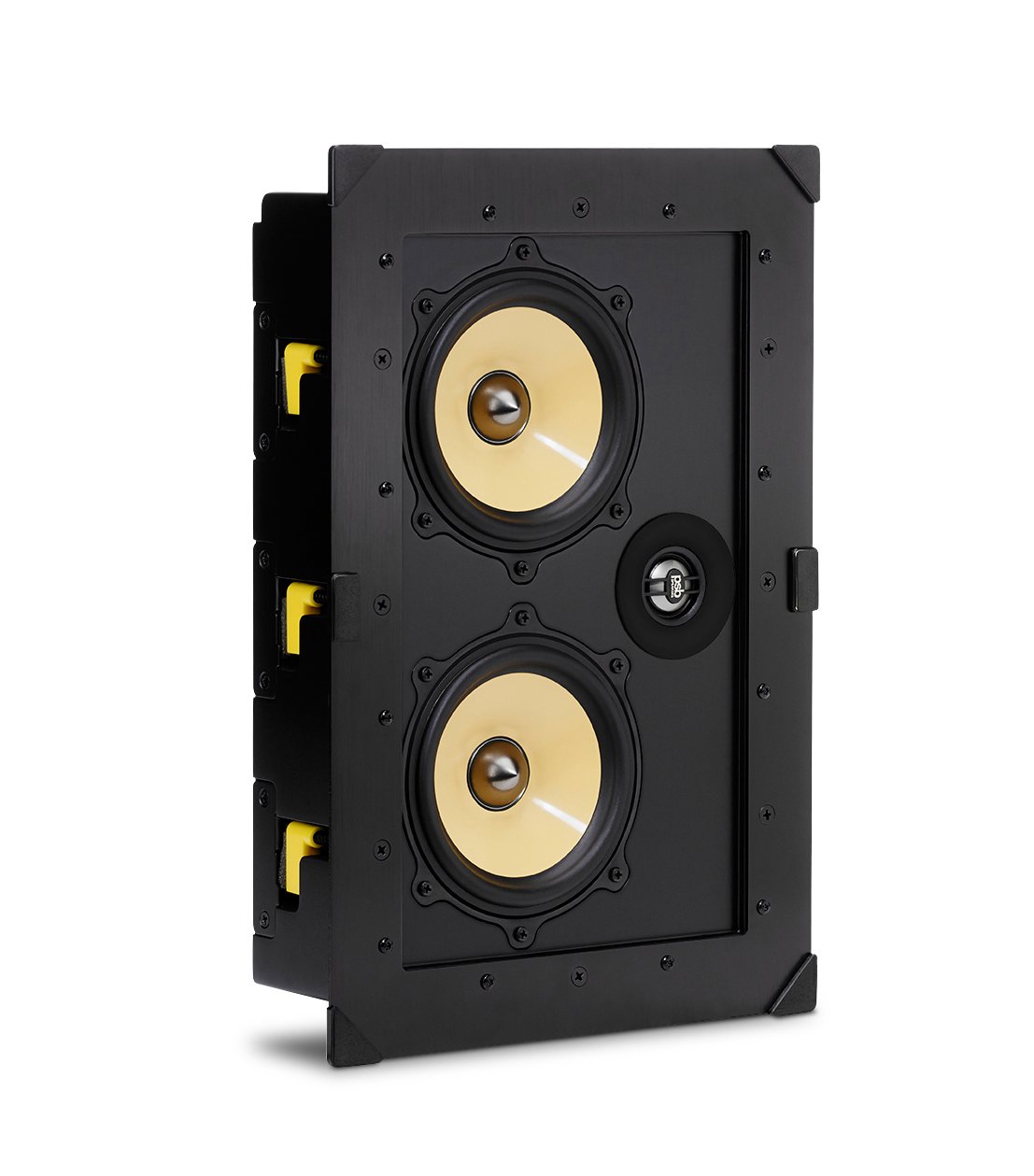

PSB W-LCR – In-Wall Speaker

คุณสมบัติสินค้า:

Enclosed Two-Way In-Wall LCR Speaker PSB combines the performance of a Premium two-way tower speaker with the invisibility of an in-wall to bring you a speaker with zero compromise: the W-LCR. With a perfect balance of sound quality and design, this easily concealable in-wall speaker can be used as part of a two-channel system, the three front channels, or as all the speakers in a surround system.

Share

หมวดหมู่ : BY BRAND PSB LOUDSPEAKER BY CATEGORY CUSTOM INSTALL IN-WALL SP

แบรนด์ : PSB

Share

Reliable and accurate sound quality in your home
The CustomSound W-LCR in-wall speaker is a small two-way design using two 5¼” (133mm) woofers along with the same 1″ (25mm) titanium dome tweeter as found in the Imagine Series. This is a perfectly crafted speaker in which both sound quality and design are equally elevated. Experience the best of both worlds with the W-LCR.

Versatile and robust
The W-LCR is a versatile speaker that can be used in a variety of configurations. Position one horizontally under your wall-mounted TV for hearty centre-channel performance, and place one vertically on each side of your TV for the left and right channels. The result? A smooth, seamless, accurate soundstage that draws you into the action on the screen.

Dynamic performance, zero footprint
The W-LCR features a carefully engineered enclosure that ensures the acoustic integrity of the design in any installation. Heavy-duty steel and ABS doglegs make installation fast, easy, and secure, and the provided white magnetic grilles attach to the front frame of the speaker, seamlessly concealing the entire unit.

สนใจงานระบบ ติดต่อสอบถามเพิ่มเติม คุณวีระพงศ์ 065-549-9697  ,คุณจิระภากร 092-565-9090

Email : multiroom@conice.co.th

Frequency Response
On Axis @ 0° ±3dB
70-23,000Hz
On Axis @ 0° ±1 1/2dB
75-20,000Hz
LF Cutoff -10dB
62Hz
Sensitivity
Anechoic Chamber
89dB
Listening Room
91dB
Impedance
Nominal
6 Ohms
Minimum
4 Ohms
Input Power
Recommended
20 - 150 Watts
Program
150 Watts
Acoustic Design
Tweeter (Nominal)
1” (25mm) Titanium Dome with Ferrofluid
Woofer (Nominal)
2 x 5 1/4” (133mm) Clay/Ceramic reinforced Polypropylene Cone

Rubber Surround
Crossover
1700Hz, LR4
Internal Volume
0.12 cu ft (3.48L)
Design Type
Sealed
Dimensions / Weights / Finish
Size (W x H x D)
Cutout Dimensions - 9 3/16 x 14 3/8” * (233 x 365mm)

Mounting Depth - 3 3/4” * (95mm)

Grille Dimensions - 10 3/4 x 16 x 3/8” * (273 x 406 x 7mm)
Weight
Net - 11.7lb (5.3kg)/each

Shipping - 15lb (6.8kg)/pair
Finish
White
