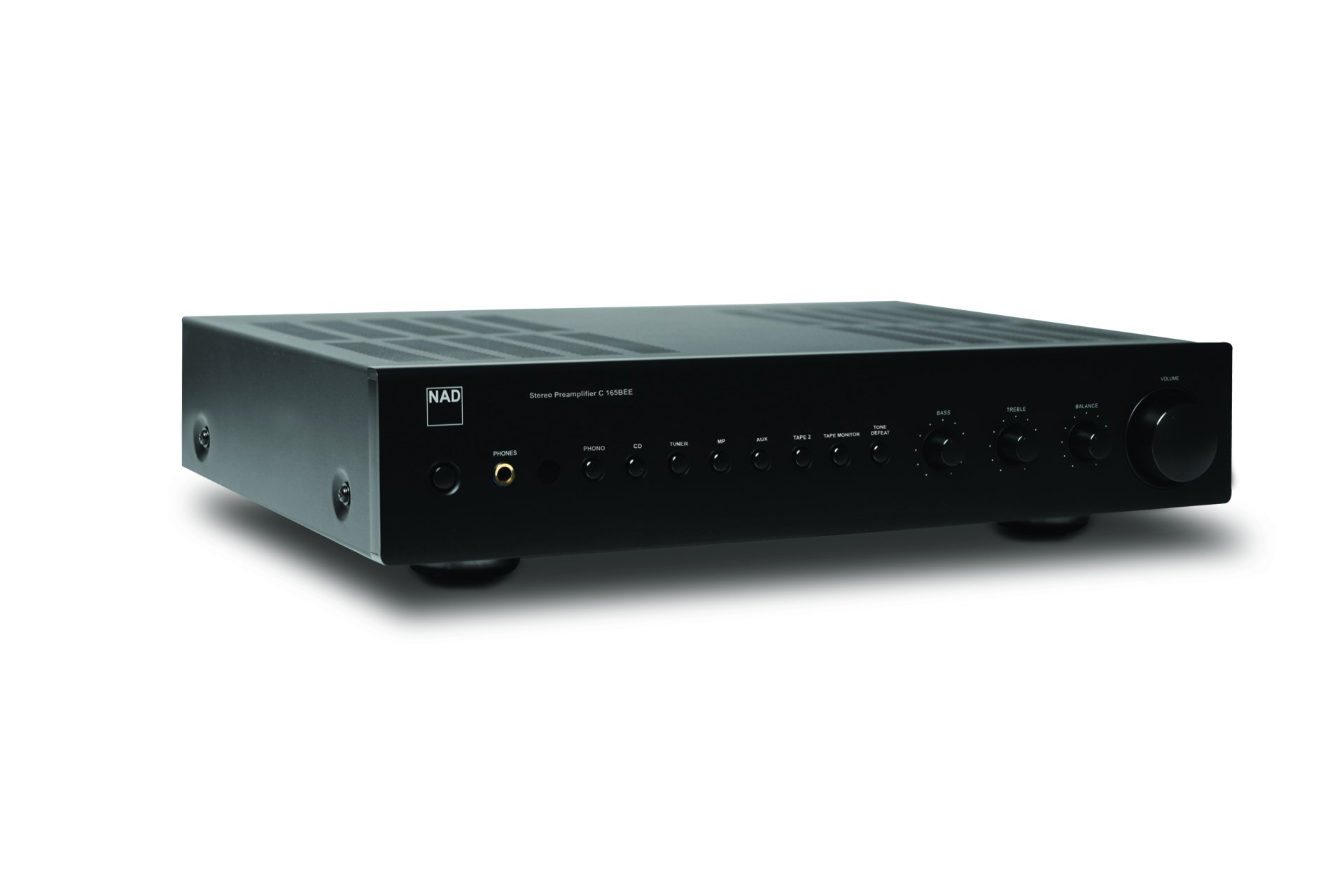

NAD C165BEE Stereo Preamplifier

NAD C165BEE

Distinguished amongst analogue preamplifiers, the C 165BEE is built to be the heart of any advanced home audio system. Starting with six line level inputs, including MC/MM phono input, the C 165BEE is incredibly flexible. Featuring a superbly designed tone control circuit, the C 165BEE is an exceptional example of how to implement high-fidelity tone controls by affecting only the frequency extremes and leaving the critical midrange untouched, while also offering a bypass option. With a 12V-trigger output and IR inputs and outputs on the rear panel, the C 165BEE is ready to integrate with CI control systems. With outstanding build quality and true engineering sophistication, the NAD C 165BEE is the preamp you’ve been waiting for.

Key Features

• 6 Line Level Inputs
• Phono Input with selectable Moving Coil and Moving Magnet sensitivity settings

• 3 position Resistance and Capacitance settings for Phono Input

• 2 Line Level Outputs, one variable from 0dB to -12dB

• Subwoofer Output

• Independent Headphone Amplifier

• Pure Class A Gain Modules

• Sealed Reed Relays for Input Switching

• Heavy Gauge Steel Chassis

• Bass and Treble Controls with Defeat Switch (bypass]

• Gold Plated Sockets

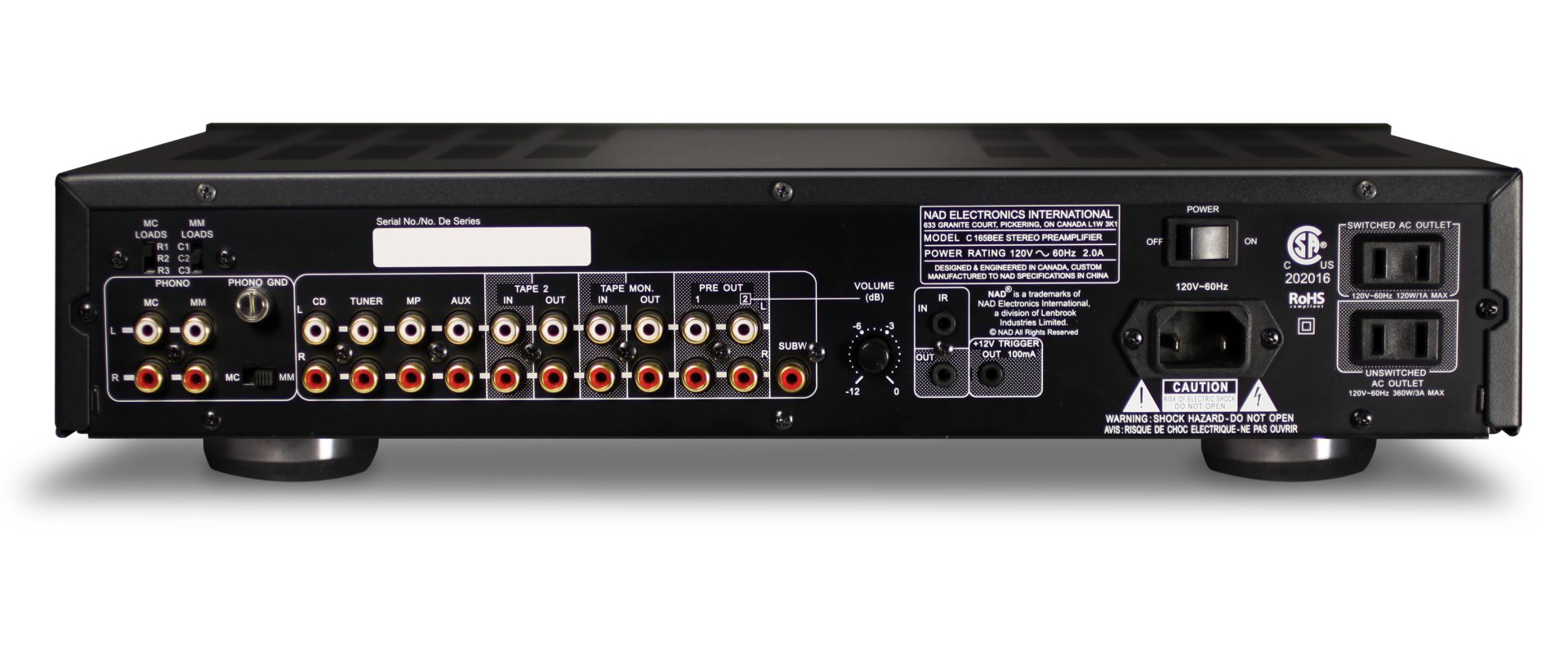

• 12V Trigger Output

• IR In and Out

• Detachable Power Cord

• SR 8 NAD 4 Device System remote Control

• <1 watt Standby Consumption



Line Level Input

Input Impedance (R and C)
100 kilohm+ 320 pF

Input Sensitivity
158mV (ref. 500mV out)

Maximum input signal
9V

Signal/Noise Ratio, A-weighted

• 108dB (ref. 500mV in 500mV out, volume set to unity gain)
• 112dB (ref. 2V out, Volume maximum)



Frequency response

• ± 0.1dB (ref. 20Hz – 20kHz, Tone defeat ON)

• ± 0.5dB (ref. 20Hz – 20kHz, Tone defeat OFF)


Frequency response (subwoofer out)
100Hz (ref. -3 dB)

Output
Output Impedance

Pre-out
75 Ohm

Tape out
Source Z + 440 Ohm

Sub out
100 Ohm

Headphones
10 Ohm

Maximum Voltage Output

Pre-out
>10V into 600 Ohm

Tape out
>10V into 10 kilohm load

Sub out
>7V into 1 kilohm load

Headphones

• >5V into 600 Ohm
• >2V into 32 Ohm



HD (CCIF IMD, DIM 100)
>0.001% dB (ref. 20Hz – 20kHz, 2V out)

Tone Controls

Treble
±5dB at 10kHz (ref. 2V in 500mV out)

Bass
±5dB at 100Hz (ref. 2V in 500mV out)

Phono Input
Input impedance

MC
40, 100, 600 Ohm (R)
1nF (C)

• 47 kilohm (R)
• 220, 300, 400pF (C)

Input sensitivity

MC
0.15mV (ref. 1kHz 500mV out)

MM
2.63mV (ref. 1kHz 500mV out)

Input overload

MC
1mV/10mV/100mV (20Hz/1kHz/20kHz)

MM
16mV/147mV/1.4V (20Hz/1kHz/20kHz)

Gain – Tape out

MC in

59.8dB1 (ref. 1kHz, 10 kilohm load)

MM in
36.5dB (ref. 1kHz, 10 kilohm load)

THD (CCIF IMD, DIM 100)
0.009% (ref. 20Hz – 20kHz, 5Vrms Tape out)

Signal/Noise ratio, IHF A-weighted

MC
78dB2 (ref. 0.5mV)

MM
86dB3 (ref. 0.5mV)

RIAA response accuracy

• ± 0.5dB (ref. 20Hz – 50Hz)
• ± 0.3dB (ref. 50Hz – 20kHz)

Infrasonic filter

• 10Hz (at -3dB)

• 5Hz (at -14dB)



Channel Separation

• >60dB (ref 1kHz/10kHz)

• >60dB (ref. 1kHz/10kHz)

Physical Specs
Dimensions (W x H x D)

Net

• 435 x 80 x 286mm
•  17 1/8 x 3 x 11 1/4”



Gross*

• 435 x 99 x 315mm

• 17 1/8 x 3 15/16 x 12 1/2”



Net weight

• 13.23lb (6kg)Shipping weight
• 17.1lb (7.8kg)
