ที่สุดของเพาเวอร์แอมป์อนาล็อกจาก NAD ด้วยกำลังขับที่มากถึง 150W rms ด้วยการย่อส่วนของแอมป์มาสเตอร์ซีรี่ย์อย่าง NAD M3 ที่เป็นการใช้วงจรภาคขยายแบบเดียวกัน จากBjorn Erik Edvardsen คุณจึงมั่นใจในคุณาพเสียงที่มีรายละเอียดที่ไม่เคยได้เจอจากแอมป์ระดับเดียวกันมาก่อน
Categories : BY BRAND ,  NAD ,  CLASSIC SERIES ,  BY CATEGORY ,  AMPLIFIER ,  POWER-AMP ,
Brand : NAD
Share
Features

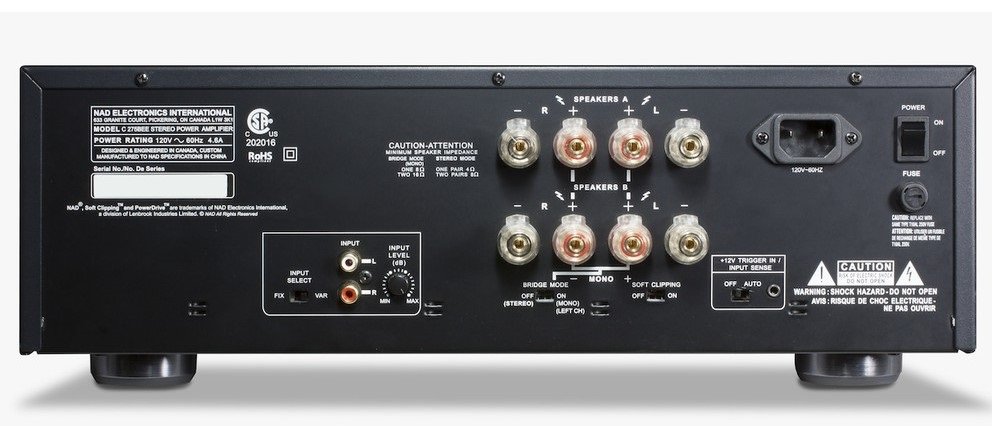

Fixed IN, Speaker OUT
Continuous output power into 8 Ohm and 4 Ohm (both channels driven) >150W (ref. rated THD, 20Hz – 20kHz)
Continuous output power into 8 Ohm (Mono, Bridge mode) >330W (ref. 20Hz – 20kHz, (Mono, Bridge mode) <0.02% THD)
Rated THD (250mW to rated power, CCIF IMD, DIM 100) <0.008% (ref. 20Hz – 20kHz)
Clipping power (4 Ohm and 8 Ohm) >170W (ref. 1kHz 1% THD)
IHF Dynamic Power 8 Ohm250W
4 Ohm410W
2 Ohm600W
IHF dynamic power (Bridge mode) 8 Ohm 800W
4 Ohm1200W
Peak output current >50A (ref. 1 Ohm, 1ms)
Signal/Noise ratio >102dB (A-weighted, ref. 1W)
>123dB (A-weighted, ref. 150W)
Damping factor >180 (ref. 8 Ohm, 50Hz and 1kHz)
Frequency response ±0.1dB (ref. 20Hz – 20kHz)
3Hz – 100kHz (ref. -3dB)
Input impedance (Fixed IN) 10 kilohm + 200pF
Input impedance (Variable IN) 100 kilohm + 100pF
Input Sensitivity 1.2V (ref. rated power)
Voltage gain 29dB
Minimum input level for AUTO TRIGGER 10mV at 1kHz
Time to power OFF at no signal in AUTO mode <10 minutes
Power Consumption
Normal operation 312W (ref. 230V AC 50Hz; 120V AC 60Hz)
Standby power <1W
Idle power <100W
Weight & Dimensions
Dimensions (W x H x D)Net 435 x 133 x 352mm
Net weight 32.2 lbs (14.6 kg)
Shipping weight 37.3 lbs (16.9 kg)
