SUPRA SWIFT 3M XLR

คุณสมบัติสินค้า:

SUPRA SWIFT 3M XLR แบบตัวผู้ ราคาต่อตัว

Share

หมวดหมู่ : BY BRAND SUPRA BY CATEGORY CABLE CONNECTORS

แบรนด์ : SUPRA

Share

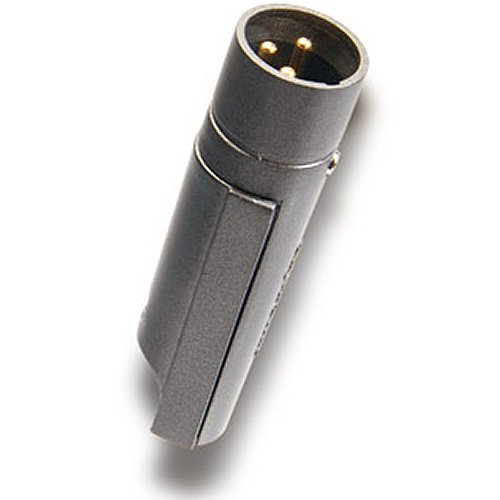

 Supra Swift 3M XLR Male

Supra Patented XLR connector consists of 24K gold plated pins for maximum conductivity and fully shielded housing for max RFI immunity. Further it is easy to assemble, there are no screws that may get lost and there are no shells or housing parts that must be pre-mounted prior to fixing the cable.

This is a very sturdy contact, aimed for the professional audio industry such as in-studio and on-stage usage, but will of course perform exceptionally good in high-end home hifi equipment as well. It is the standard connector for our pre-mounted top-of-the-line interconnects, e.g. The Sword.

Technical data
Contact standard                                            Male balanced XLR for cable mount
Contact pins                                                     24K gold plated copper
Insulation                                                          Noryl
Cover (patented)                                             Shielding side mounted after cable fixing
Fixing - apparatus                                          Button release quick lock
Fixing - cable                                                   Solder
Strain relief                                                       Housing cover clamping force
Maximum cable area in solder slot and solder loop                 1.5 and 1.0 respectively mm2
Maximum cable diameter                              7.7 mm
Dimensions (Ø x length)                                19 x 70 mm
