SUPRA Classic 6.0

คุณสมบัติสินค้า:

ราคาต่อเมตร

Share

หมวดหมู่ : BY BRAND SUPRA BY CATEGORY CABLE SPEAKER CABLE

แบรนด์ : SUPRA

Share

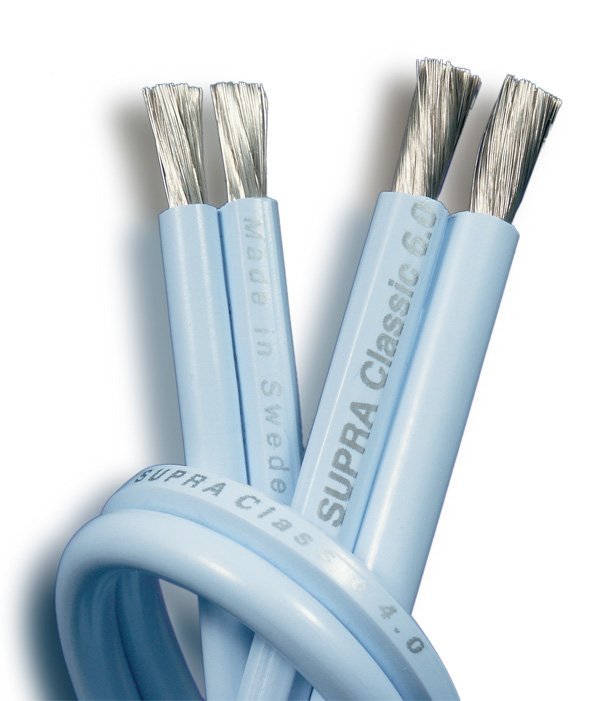

Supra Classic 2 x 6 mm2

Typical applications: low powered, short length mid-powered or treble wiring in a bi-wired or bi-amplified Hi-Fi system.

Classic Series - The Original!
The Classic series encompasses flexible tin plated, multi-strand, oxygen-free 5N purity Copper! In addition to the corrosion resistance, the tin plating contributes also to a much wanted skin-effect reduction and prevents the electrons (i.e. the current) from disruptive ”jumps” between the strand surfaces, hence adding unwanted timing errors to the music signal. The insulation of a select grade chemically stable PVC further improving the sonically benign tin surface over time. The Classic cables are available also in a flame retardant and halogen free version; Classic/H FRHF.

The Classic series is according to todays measures good entry level cables and are available in dimensions suitable for a wide range of power transmission demands. Compared to any low cost hifi-kits included speaker cables, Supra Classic will give a clearly audible improvement.

Mechanical Specifications

Crossection area                                        6.0 / 9mm2 / AWG
Numbers of conductors                           2 pieces
Number of strands per conductor        756 pieces
Strand diameter                                         0.10 mm
Conductor Material                                   Tin plated oxygen free Copper
Jacket                                                             Heat and age resistant PVC
 External sizes                                              5.5 x 11.2 mm
Weight                                                            154 g/m
Halogen free and flame retardant           No, refer to Classic FRHF

Electrical performance

Resistance                                                      2.9   Ohm/km
Inductance                                                     0.59  uH/m
