NAD CI720

Attribute:

Share

Brand : NAD

Share


NAD CI720

The NAD CI 720 V2 is the perfect solution for adding a powered zone for network audio. With the ability to support up to 64 zones, the CI 720 V2 provides easy access to local libraries, Internet radio, popular music streaming services, and major control systems such as Crestron and Control4. As a BluOS® Enabled product, the CI 720 V2 also integrates with select NAD products, as well as Bluesound’s wireless, hi-res multi-room streaming players. Wielding the power of HybridDigital™ amplification technology, the CI 720 V2 can drive any speaker to life-like detail. NAD has also created a custom rack accessory that can house up to six CI 720 V2s in a compact 3U rack space. Delivering amazing performance and easy setup, the NAD CI 720 V2 is the perfect addition to today’s most advanced custom home audio systems.


Key Features

  • 1 Stereo zone with HybridDigital™ amplification
  • 2 x 60W
  • Subwoofer out
  • 3U height ‘Blade’ Chassis, up to six units fit in one rack space
  • Ethernet connectivity
  • Analogue audio input
  • Digital optical input
  • USB input
  • Uses standard network protocols
  • Universal voltage (100 ~ 240)
  • Thermostatic fan cooling
  • Third party control and automation integration drivers available

Audio

Supported File Formats
MP3, AAC, WMA, OGG Vorbis, WMA-L, FLAC, ALAC, WAV, AIFF, MQA, HRA

Supported Cloud Services
WiMP, Slacker Radio, Qobuz, HighResAudio, JUKE, Deezer, Murfie, HDTracks, Spotify, TIDAL, Napster, Microsoft Groove (with OneDrive), Classics Online, KKBox.

Supported Operating Systems
Microsoft Windows 7 SP1 or higher, Apple Macintosh OSX 10.7.5 or higher

Free Internet Radio
TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise

Integration Partners
Control4, RTI, Crestron, URC, roon

Rated Power
2 x 60W

Rated Distortion
≤0.005%

Signal-to-Noise Ratio
-110dBA

Sample Rate
32 – 192kHz

Bit Depth
16 – 24

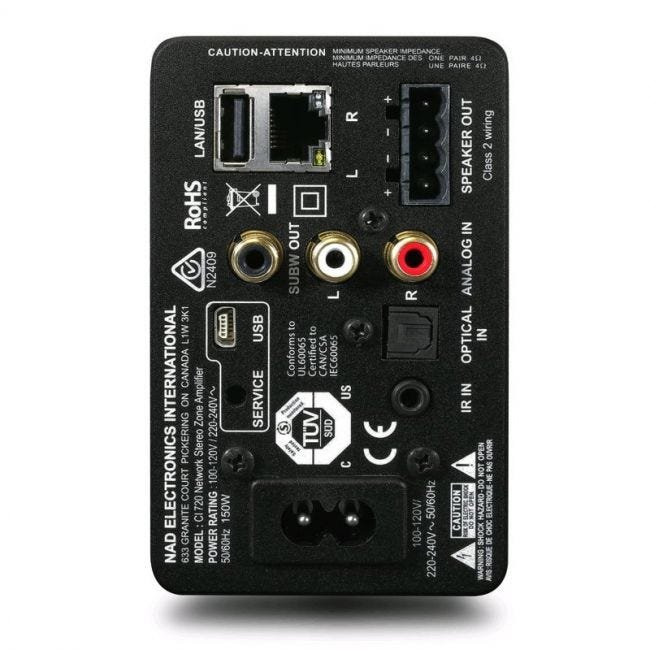

Connections
Input

Analogue
RCA Stereo

SPDIF
Optical (TOSLINK)

USB

  • Type A (for USB memory stick and supported peripherals – FAT32 formatted)
  • Type B Mini USB (for servicing purposes only)


IR Input
3.5mm Jack

Output
Subwoofer OUT

Speaker OUT
 Phoenix Speaker connection block

Network

Ethernet/LAN
Ethernet RJ45, GigE

User Interface
FREE Android and iOS App available at GooglePlay and Apple App Store

General Specifications

AC Power Supply
100-240V 50/60Hz

Standby Power
6W (Network Standby Mode)

Dimensions (W x H x D)
70 x 120 x 350mm (2.81 x 4.75 x 13.81”)

Net Weight
1.6kg (3.5lb)

Shipping Weight
2.3kg (5.1lb)

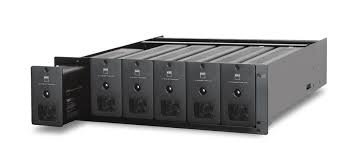

RM 720 Rack Mount Accessory

Dimensions (W x H x D)
480 x 135 x 460mm (18.9 x 2.3 x 18.1”)

Weight
4.28kg (9.45lb)
