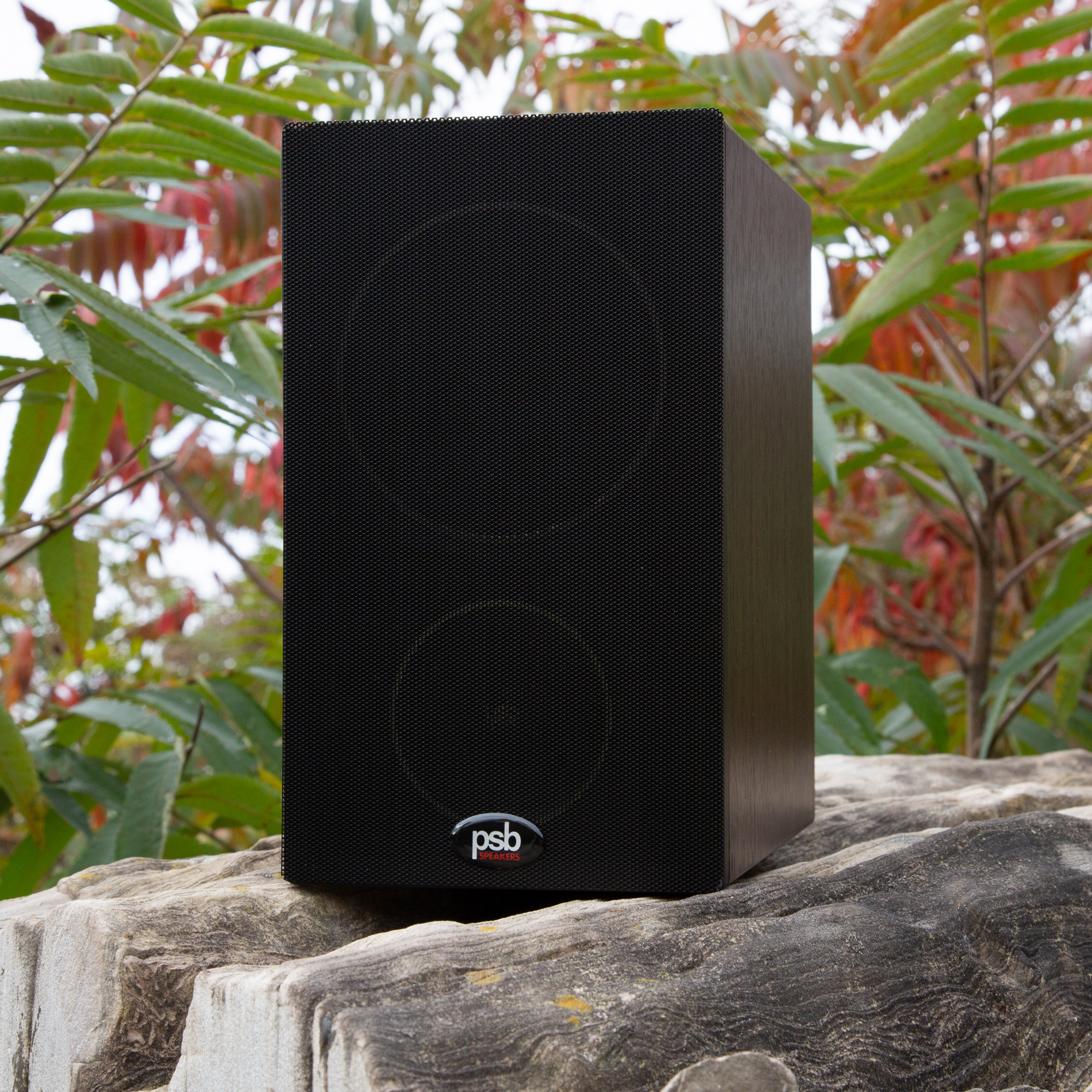

PSB Alpha P3

Attribute:

The Alpha P3 is a small two-way bookshelf speaker that brings hifi pedigree to your stereo or home theatre system to fill the room with crystal-clear sound

Share

Share

The Alpha P3 is a small two-way bookshelf speaker that brings hifi pedigree to your stereo or home theatre system to fill the room with crystal-clear sound

Frequency Response
On Axis @ 0° ±3dB
57-21,000Hz
On Axis @ 0° ±1 1/2dB
67-20,000Hz
Off Axis @ 30° ±1 1/2dB
67-10,000Hz
LF Cutoff -10dB
43Hz

Sensitivity
Anechoic Chamber
85dB
Listening Room
87dB

Impedance
Nominal
8 Ohms
Minimum
4 Ohms

Input Power
Recommended
10 – 80 Watts
Program
60 Watts

Acoustic Design
Tweeter (Nominal)
3/4” (19mm) Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet
Woofer (Nominal)
4” (102mm) Textured Polypropylene Cone with Rubber Surround
Crossover
3,000Hz, L4
Internal Volume
0.11 cu ft (3.1L)
Design Type
Tuned Port Bass Reflex, 1 3/8” (35mm) Rear Port

Dimensions / Weights / Finish
Size (W x H x D)
5 1/8” x 8 5/8” x 6 7/8”*
(130 x 220 x 174mm)
Weight
4.9lb (2.2kg)/each
11.45lb (5.2kg)/pr
