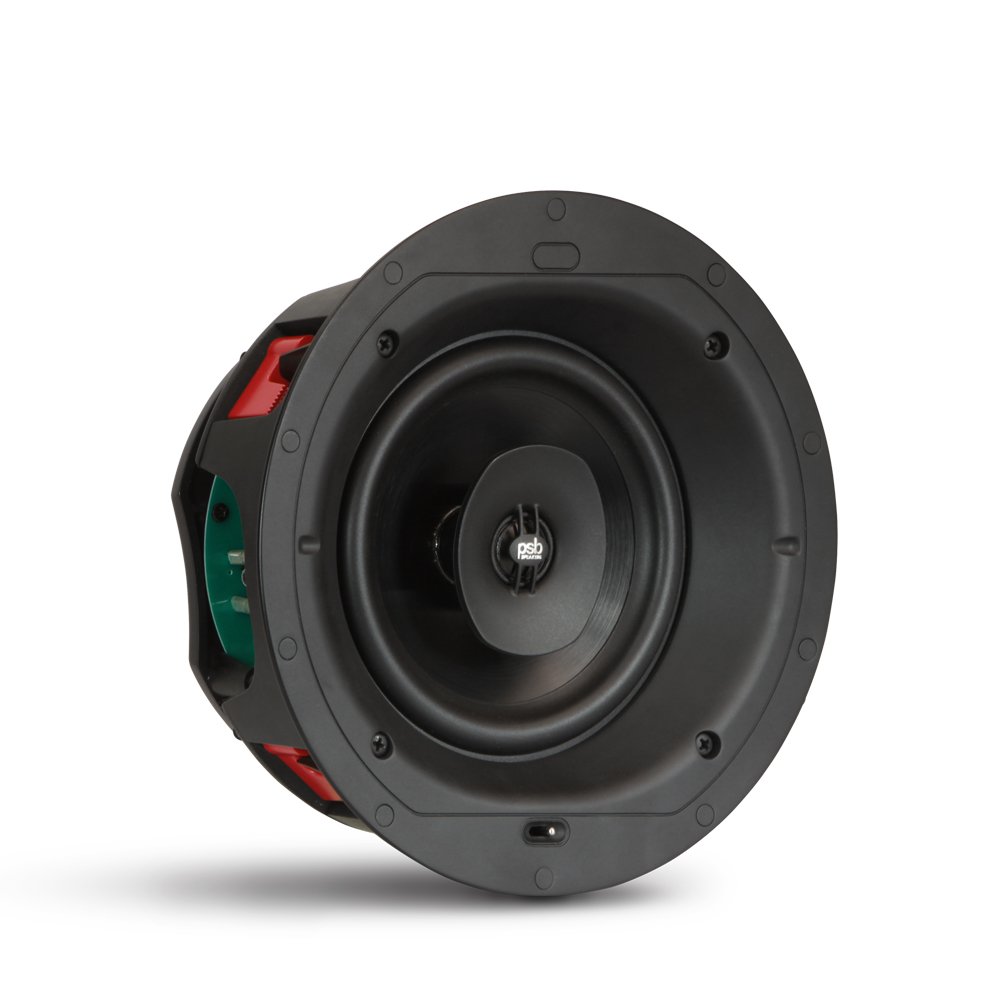

PSB CS610 -6″ In-Ceiling Speaker

คุณสมบัติสินค้า:

Select Performance In-Ceiling Speaker This premium architectural speaker embodies over 40 years of cutting-edge research in the field of acoustics and loudspeaker design. Musical, refined, and nearly invisible, these speakers can create a beautiful ambience, even in larger spaces. สินค้าราคาต่อตัว

Share

แบรนด์ : PSB

Share

here are three models in this series, and all feature frameless magnetic grilles with invisible scrims. Both round and square grilles are provided, simplifying and reducing your inventory requirements. Each model features an improved simple, foolproof mounting system using heavy duty doglegs. Cutting templates are included. Pre-construction brackets and backcans are also available.

CS610 2-way In-Ceiling Speaker

Featuring PSB’s trademark carbon-filled polypropylene 6 1/2” woofer, this speaker has a warm and balanced sound with plenty of power handling thanks to the high temperature voice coil. The 3/4” aluminium dome tweeter, another proprietary PSB driver, is concentrically mounted and features a carefully engineered Wave Guide and ball-joint pivot mount assembly. This allows the tweeter to go lower in frequency, creating a perfect blend with the woofer in the crossover region, and allows the tweeter to be aimed toward the listening position for enhanced musical imaging. Adjustment for the level of the tweeter allows you to ‘dial in’ the upper frequency response of the speaker and its acoustic environment after installation to achieve the most musical balance for every room.

สนใจงานระบบ ติดต่อสอบถามเพิ่มเติม คุณวีระพงศ์ 065-549-9697  ,คุณจิระภากร 092-565-9090

Email : multiroom@conice.co.th

Frequency Response
On Axis @ 0°±3dB
50-20,000Hz
On Axis @ 0°±1 1/2dB

Off Axis @ 30°±1 1/2dB

LF Cutoff -10dB

Sensitivity
Anechoic Chamber
85dB
Listening Room
87dB
Impedance
Nominal
6 Ohms
Minimum
4 Ohms
Input Power
Recommended
10 - 100 Watts
Program

Acoustic Design
Tweeter (Nominal)
3/4” (19mm)
Aluminum Dome
Black Anodized
Midrange (Nominal)

Woofer (Nominal)
6 1/2” (165mm)
Fiber filled Injection Molded
Polypropylene Cone / Rubber Surround
Crossover
2100Hz, LR4
Internal Volume
N/A
Design Type
Open Back
Dimensions / Weights / Finish
Size (W x H x D)
8 3/8” * Diameter
(212mm) Diameter
Weight
4.4lb (2kg)/each
Finish
White
