SUPRA EFF-ISL

There are electric properties that needs to be addressed prior to reaching the goal; capacitance, phase, skin-effect and shielding. The purity of conductors, dielectric choice, plating quality is generally sub-standard even though they might appear high-end.
The skin-effect is the physical event forcing higher frequency signals flow closer to the conductor surface. This means that low and high frequency impedance are not equal and therefor affects the signal level and phase. It has a profound dynamic and clearly audible influence because an audio signal is in principle nothing but an infinite number of frequencies at an infinite number of levels.
In order to minimize the skin-effect, the EFF-I is designed according to our Equalized Frequency Flow (EFF) technique. Around a plastic core, the strands are wound forming a conductor tube, in turn forcing all frequencies through the same cross section area well tuned for the entire audible range. The result is a maintained frequency respons as from the source without any level changes like treble roll-off or phase shift. Further the strands are silver plated to provide for ultra-high frequencies and are insulated using PE, providing the lowest capacitance. Finally there must not enter any RFI destroying all efforts to maintain original signal integrity and our aluminized PET foil is a high bandwidth efficient shield keeping noise outside.
EFF-I is one of Supra´s most awarded products, not without good reason...

EFF-ISL - Analogue interconnect.

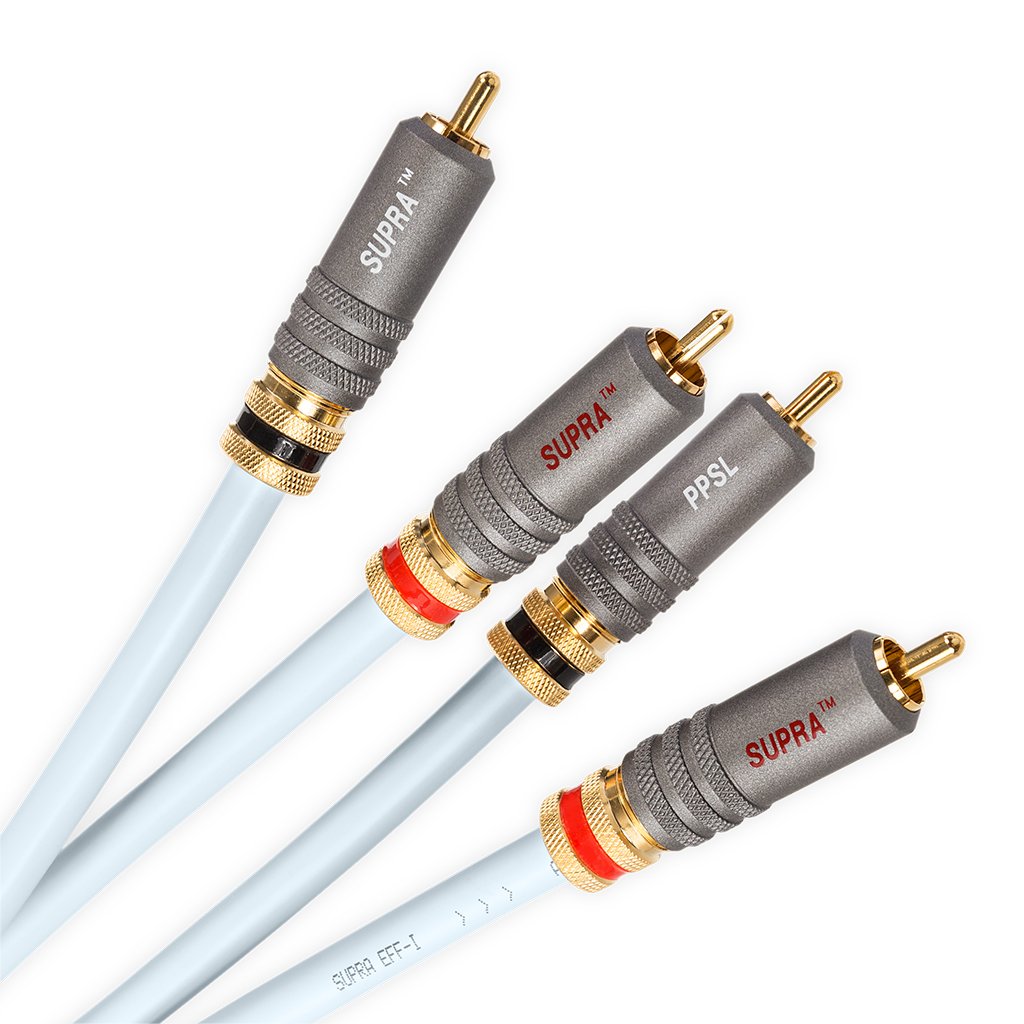

The above Supra EFF-I equipped with our best fully shielded single-end connectors Supra PPSL. The connector features chuck locking strain relief to the chassis female RCA, hence securing seemless connection and a chuck lock cable strain relief providing long service life also in applications with frequent reconnections. Suitable for use in every single-end application from entry to mid-end level, where dynamics, timing and faithful music reproduction is desired.

Mechanical Specifications

No. Of pairs                                    1
Cross. Area (mm2/AWG)             0.46 / 21
No. Wires                                         12
Wiredia.(mm)                                  0.22
Wire Material                                  Ag pl.  OFC
Insulation                                        PE
Screen                                             Alu/Pet Foil
Jacket                                              Heat & Ageing Res. PVC
Ext. Size (mm)                                Ø7.2
Weight(g/m)                                   68
Electrical Spec.
R (Ω/km)                                          38
C (pF/m)                                           75
Velo. Factor                                      0.66c
